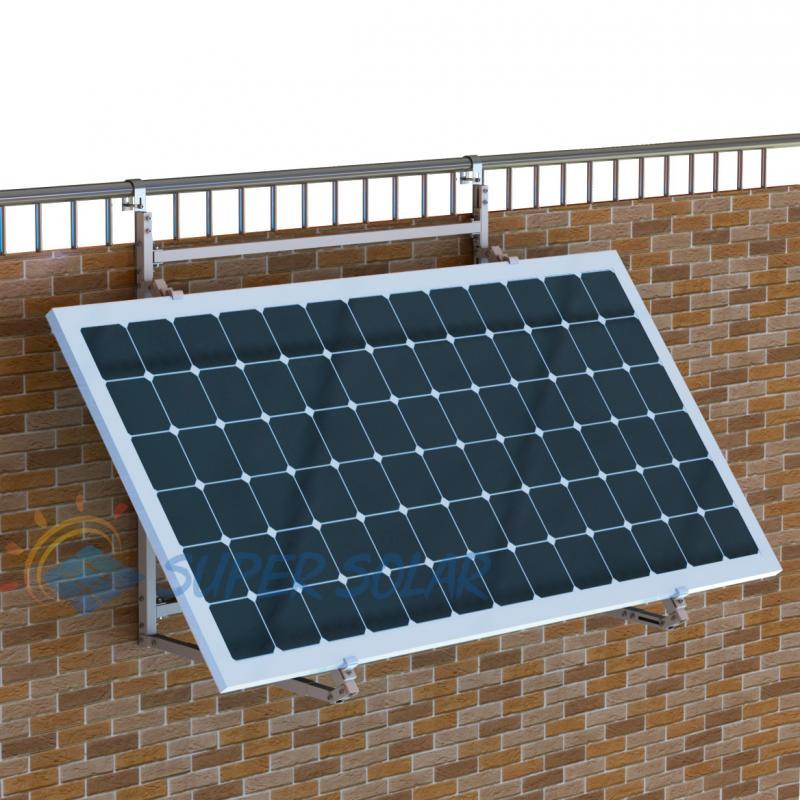

Easy Solar Mounting Brackets Balcony Balkonkraftwerk

Easy Solar Mounting Brackets Balcony Balkonkraftwerk

SUPERSOLAR balcony solar bracket is a type of mounting system that is used to install solar panels on a balcony. It is designed to provide a stable and secure platform for the solar panels, while also allowing for easy installation and maintenance. It can be used on concrete flat roofs, balcony railings, gardens, garage roofs, etc.

  • Brand:

    Super Solar
  • Item No.:

    SS-MBW-004
  • Payment:

    T/T,LC
  • Price:

    $52/set
  • Product origin:

    China
  • Color:

    Natural
  • Min order:

    10 sets
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15days
  • Product Details

  • Project Case

Balkonkraftwerk Easy Solar Mounting Brackets Balcony


This easy solar mounting brackets balcony is an solar solutions for apartments or balcony, made of durable materials as aluminum or stainless steel and is designed to be attached to the balcony railing or wall.It may also include adjustable arms or brackets to accommodate different panel sizes and angles.


Using this balcony solar bracket allows individuals who live in apartments or condos with balconies to take advantage of solar power without the need for a dedicated rooftop installation.



solar balkonkraftwerk plug & play


Products description

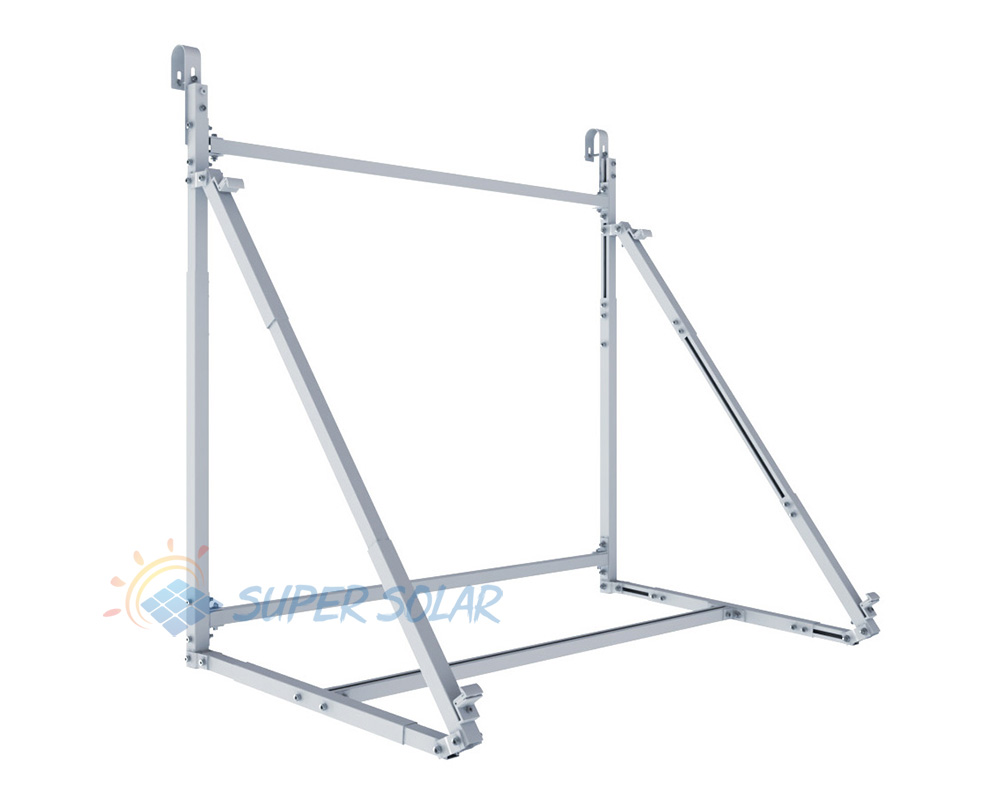

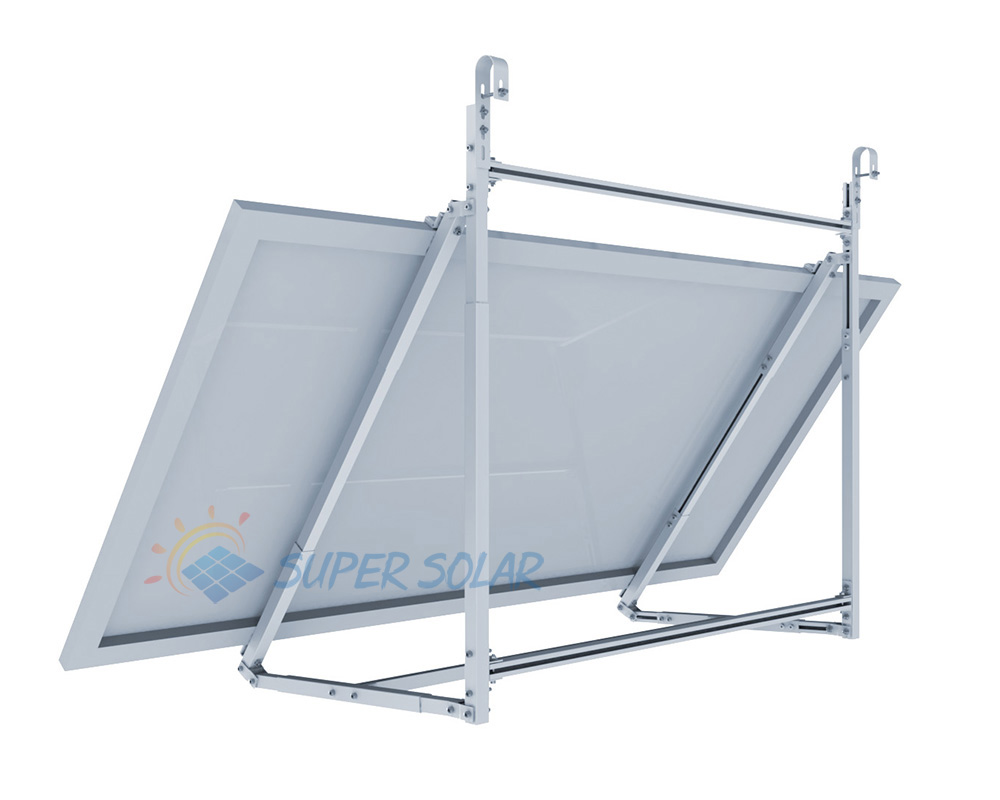

balcony solar bracket
balcony solar mounting

balcony solar bracket

balcony solar bracket

balcony solar bracket


Installtation site
Garden, flat ground, railing, walls and etc.
Main material
AL6005-T5
Tilt angle
15-30 deg, or others
Fasterner material
High-grade steel SUS304
Length of solar module
≤2200MM
Color
Natural
Width of solar module
998≤A≤1313MM
Warranty
10 years
Max wind load
Up to 60m/s
Service life
25 years
Max snow load
Up to 1.0kN/m2
Waterproof
Available

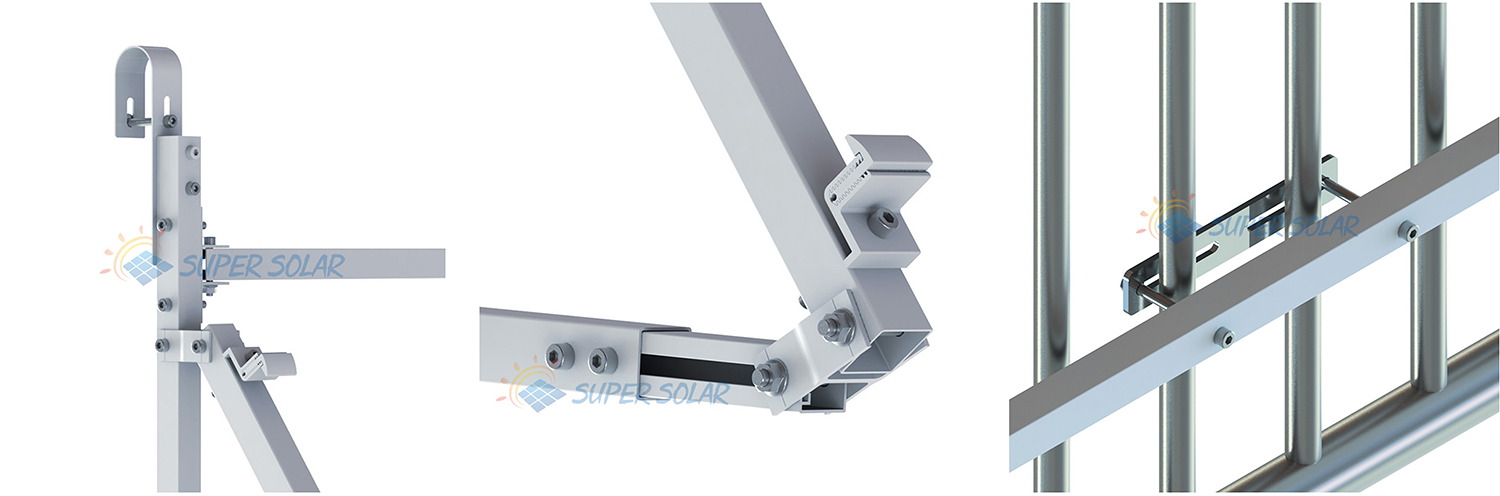

Features & Benefits


1. Made of high strength Aluminum 6005-T5.

2. Some of components are pre-assembled in factory, reduce the labor cost and installation time on site.

3. High anti-corrosion.

4. Customized as request.

balcony solar bracket

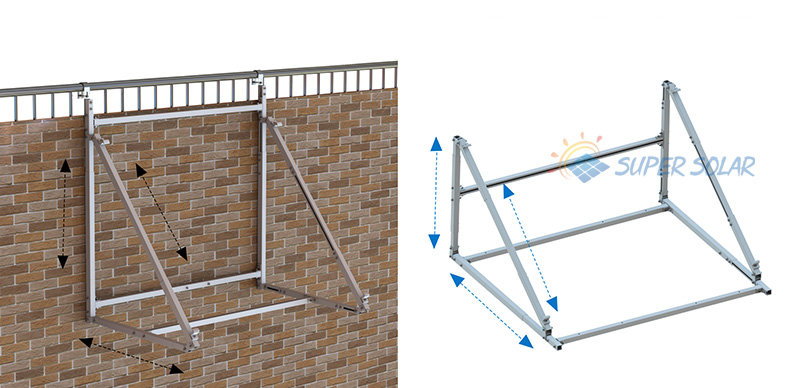

Adjustable Angle


More solar panel efficiency by tilting your panels towards the sun

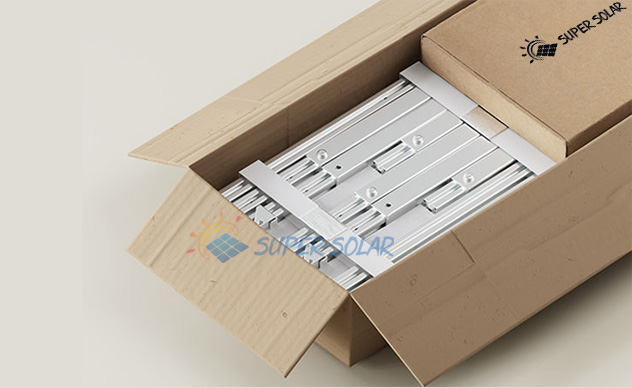

Customized Packaging


Easy to fold & transport
balcony solar bracket

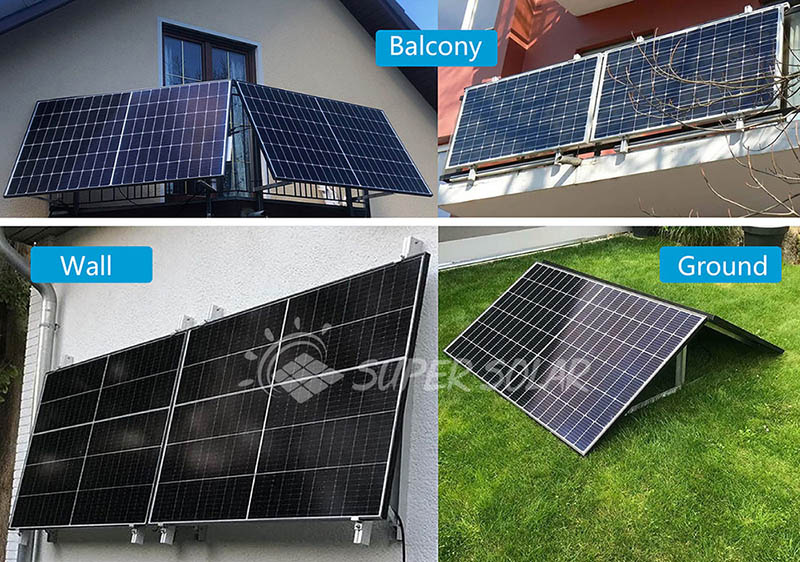

Application

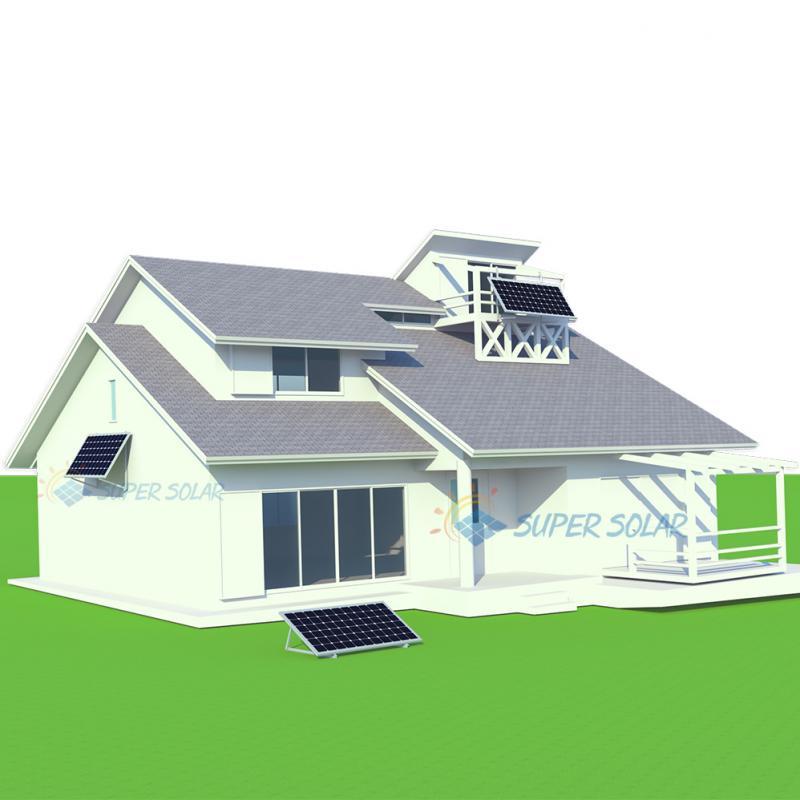

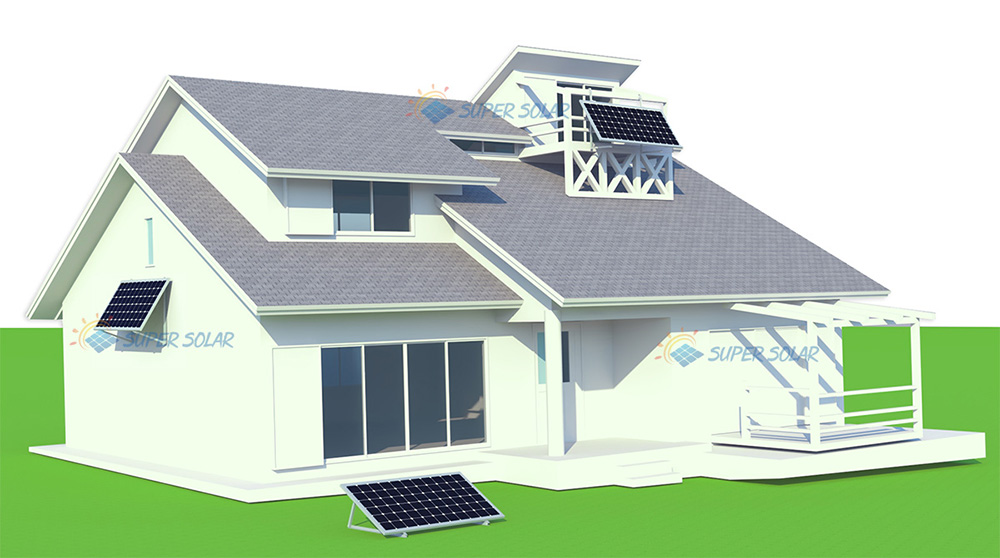

Balcony solar mounting adapt to multiple scenarios: garden, flat roof, walls and etc.


balcony solar bracket



balcony solar bracket

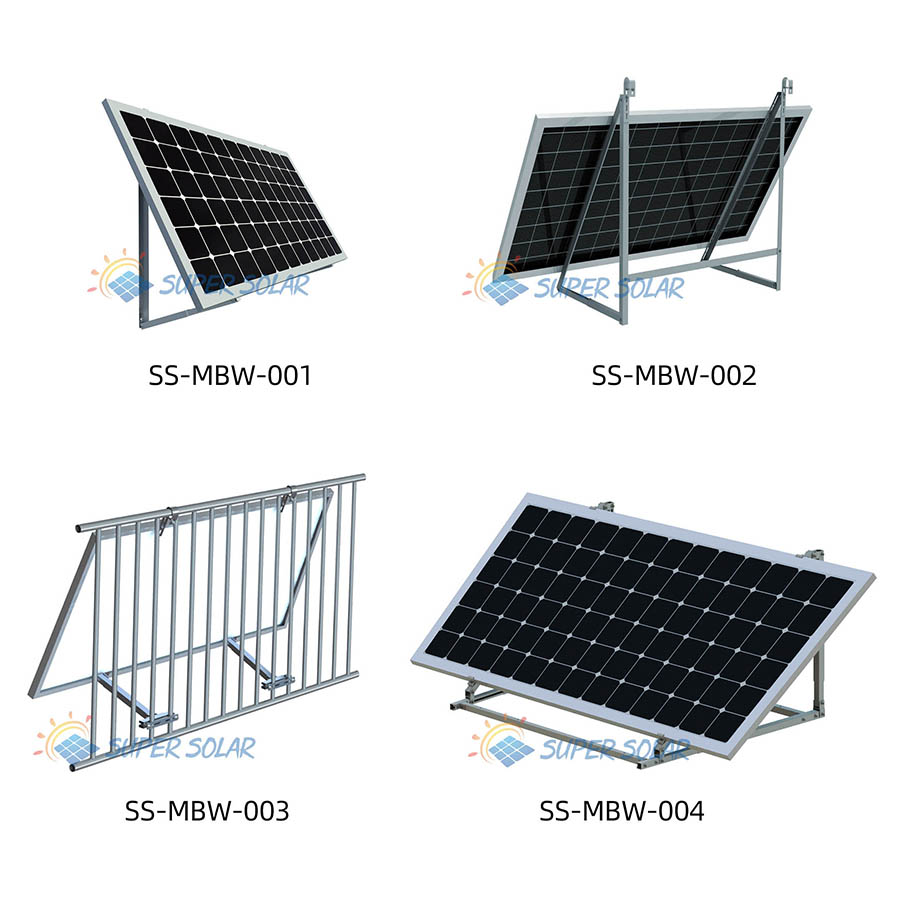

SUPER SOLAR easy solar kit series


Free Project Evaluation

We can help you with new project design support for balcony solar mounting.

Take advantage of SUPERSOLAR 20-year technology experience and let us perform a free evaluation for your project.

Our recommendations will deliver a structurally-sound, cost-effective solution based on two-decades of construction experience and testing data.




FAQ


Q: Do you support OEM service?
A: Yes just tell me your demand ,and our factory will work it out for you

Q: I have a solar carport project, any suggestions?
A:Please tell me the size and arrangement of the solar panels, if there is no arrangement,
please tell me the size of the carport , we will design it for you after receiving the information

Q:What is the lead time?
A:For OEM service need 14-21 working days;for roof project 10-14days

Q:What is the payment terms ?
A:30%deposit, 70%balance before shipment T/T LC and other payment methods are available

Q:What about the warranty?
A:The warranty period is 12 years


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products

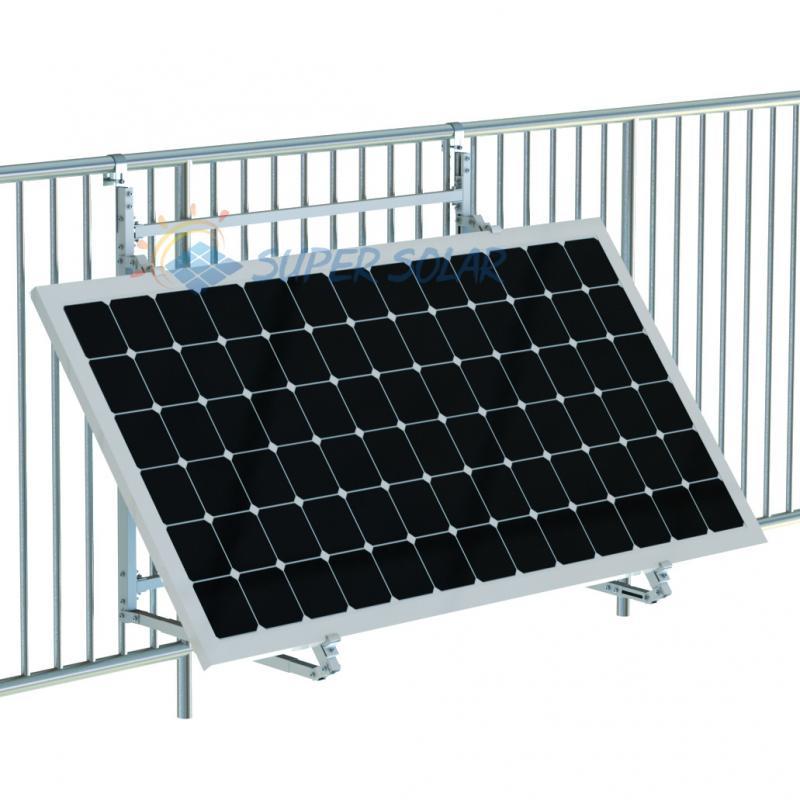

balcony solar bracket
