Flat Roof Ballasted Ground Mount Solar Factory

Flat Roof Ballasted Ground Mount Solar Factory

Super Solar's ballasted solar mount can be ballasted ground mount solar or ballasted solar on flat roof. Most of solar panels work well with this type of bracket. The it's also very easy to install.

  • Brand:

    Super Solar
  • Item No.:

    SS-MOT-18089
  • Payment:

    T/T,LC
  • Price:

    $45/set
  • Product origin:

    China
  • Color:

    Natural
  • Goods_stock:

    10000
  • Min order:

    10
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15days
  • Product Details

  • Project Case

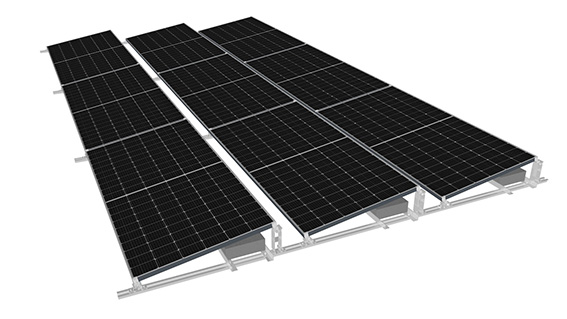

Solar Panel Aluminum Ballast Mounting Structure Flat Roof Mount

Products Description

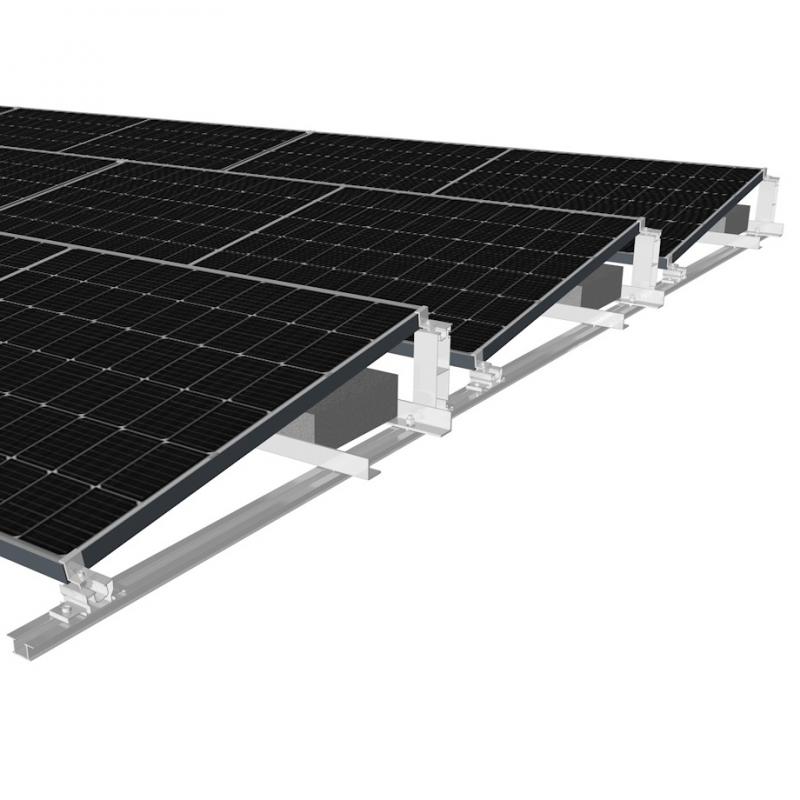

Single Layer

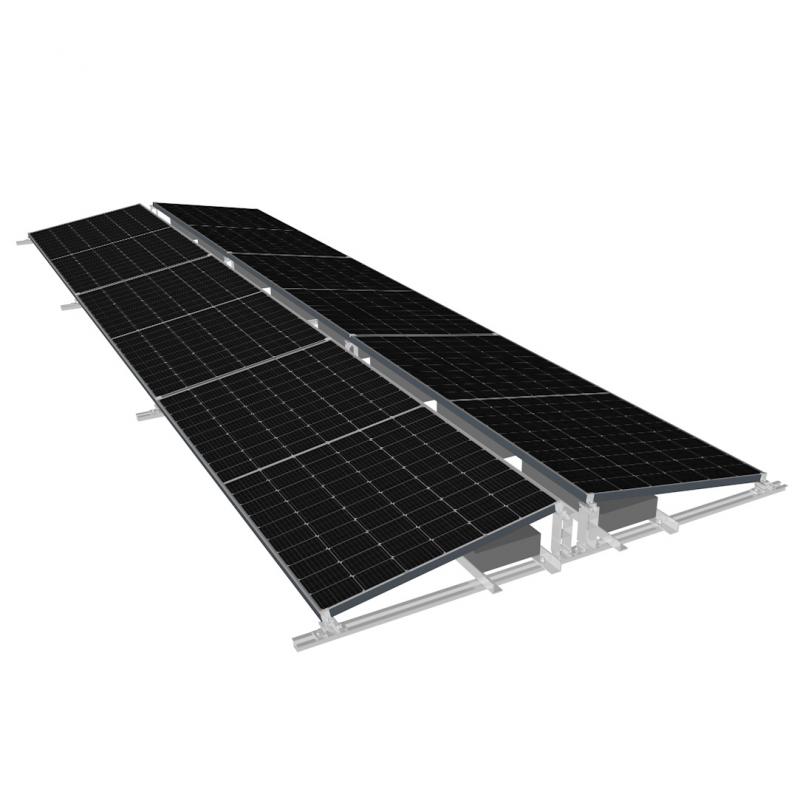

Double Layer

Installtation site

Flat roof or open field

Main material
AL6005-T5 & SUS304
Tilt angle
10deg, or to be customized
Treatment
Anodizing
Mounting type
Concrete block ballasted
Color
Natural
Max wind load
Up to 60m/s
Fasterner material
High-grade steel SUS304
Max snow load
Up to 1.0 kN/m²
Solar panel
Framed or frameless


Features & Benefits


1.Quick and convenient installation
2.No penetration on the surface
3.Excellent anti-corrosion
4.Good strength to withstand the bad weather

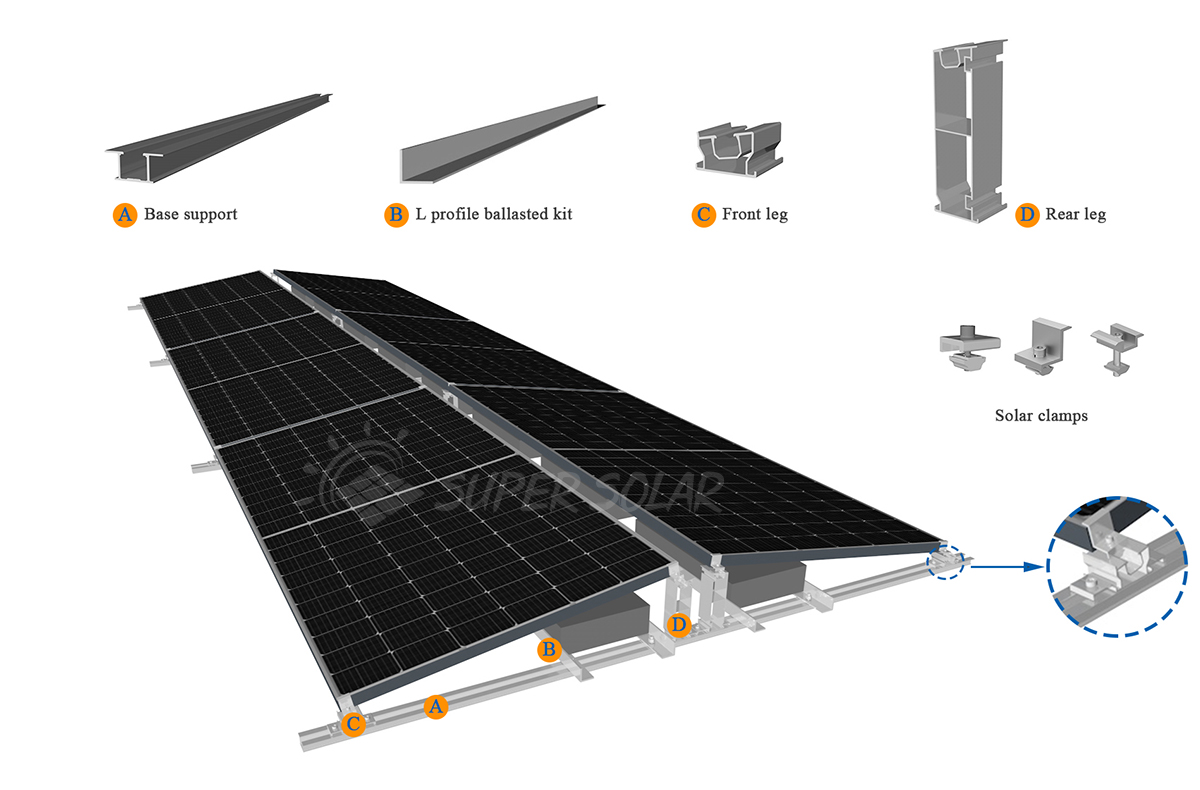

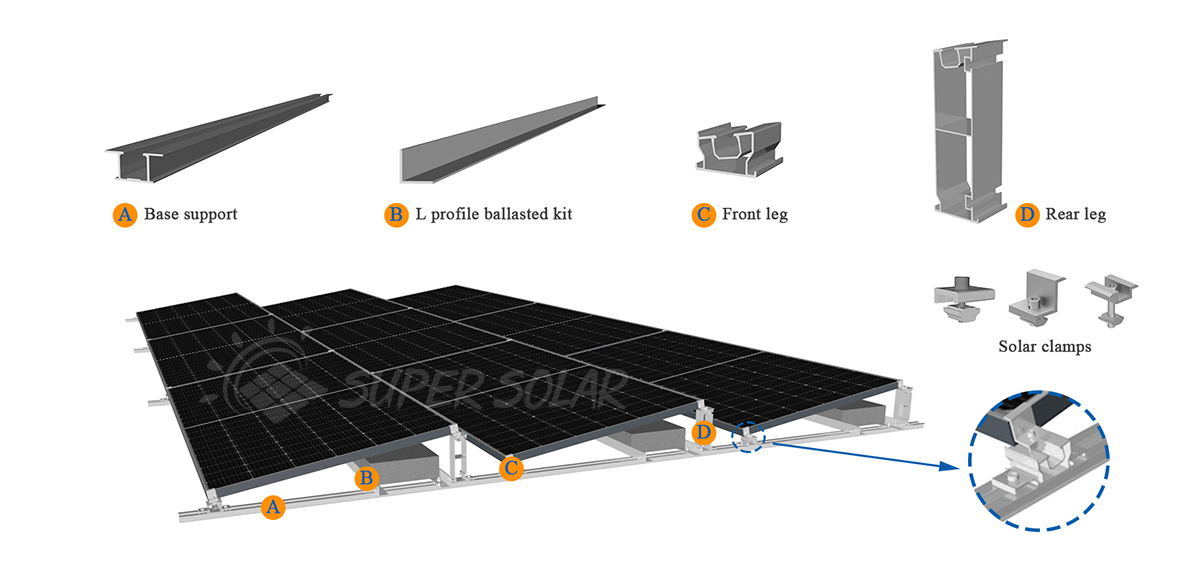

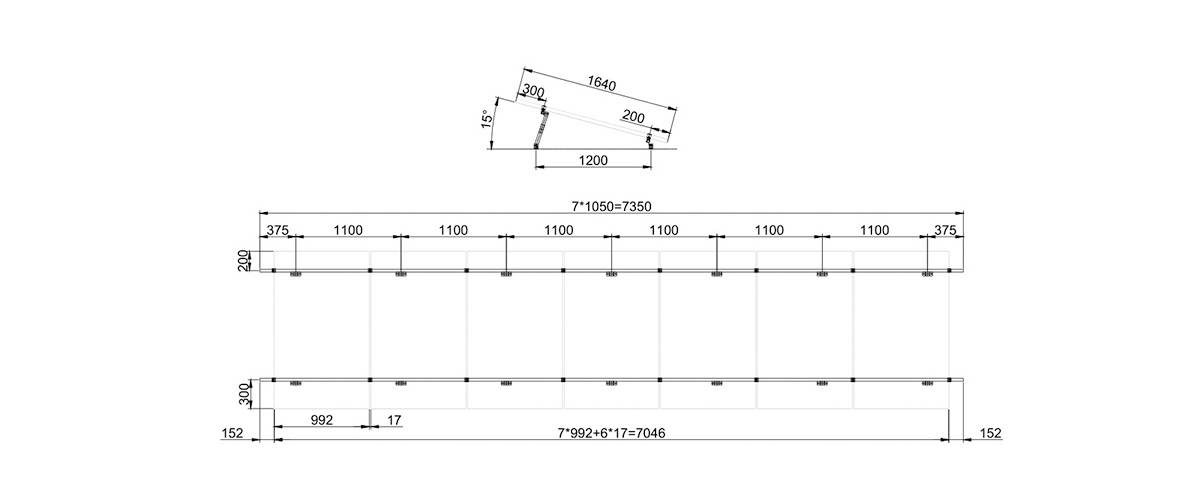

System Overview


Free Project Evaluation


We can help you with new project design support.

Take advantage of SUPERSOLAR 20-year technology experience and let us perform a free evaluation for your project.

Our recommendations will deliver a structurally-sound, cost-effective solution based on two-decades of construction experience and testing data.


Quality Test



Hardness Testing
Surface Thickness
Thickness Measurement



How to Start Your Project


SUPERSOLAR Mounting System Development and Fulfillment Services:


◆ Site layout and coverage configuration.
◆ Architectural design and structural engineering.
◆ PV panel analysis - layout, alignment, orientation and optimization.
◆ Project quoting and presentation.
◆ High resolution digital project preview (illustrations, 3D site fly over).
◆ Aluminium / Steel structure manufacture and delivery.

◆ Pre-assembled, reduce the labor cost ,save installation time on site

◆ Optional PV Panel mounting.


FAQ


Q: Do you support OEM service?
A: Yes just tell me your demand ,and our factory will work it out for you

Q: I have a roofing project that needs ballast mount as a solution, any suggestions?
A: Please tell me the size and arrangement of the solar panels, if there is no arrangement,
please tell me the size of the roof, we will design it for you after receiving the information


Q:What is the lead time?
A:For OEM service need 14-21 working days;for roof project 10-14days

Q:What is the payment terms ?
A:30%deposit, 70%balance before shipment T/T LC and other payment methods are available

Q:What about the warranty?
A:The warranty period is 12 years


CLICK HERE TO CONTACT US!

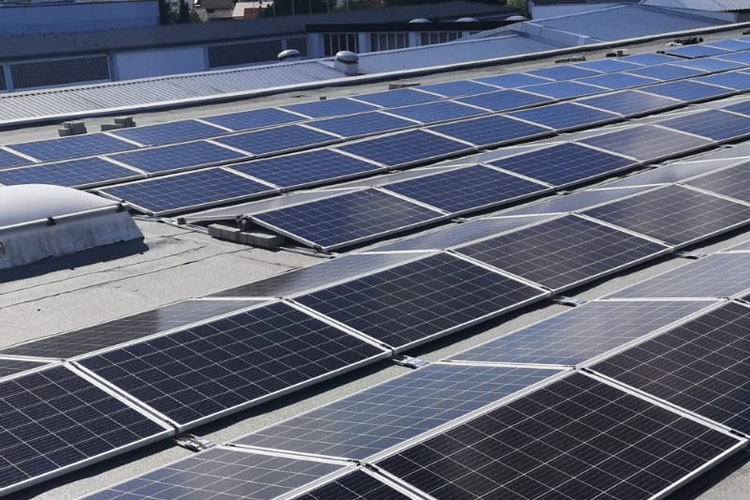

Capacity: 600KW

Location: Germany

Finished Date: 2020

System: Off grid Solar System

Project Type: solar panel flat roof mounting ballast

System Components: Solar Panels, Off Grid Inverter , Solar Battery, Cables, solar panel flat roof mounting ballast
