Hot sale aluminium ground pile solar mounting system for commercial or agricultural solar farm

Hot sale aluminium ground pile solar mounting system for commercial or agricultural solar farm

Super Solar's ground mount solar system is specially designed based on each project. All kinds of different ground mounted solar panels can fit our ground mounting structure.If you need a quote, please send us the necessary information of project to get a drawing.

  • Brand:

    Super Solar
  • Item No.:

    SS-MGP-10346
  • Payment:

    T/T,LC
  • Price:

    $58/KW
  • Product origin:

    China
  • Color:

    Natural
  • Min order:

    10 kw
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15days
  • Product Details

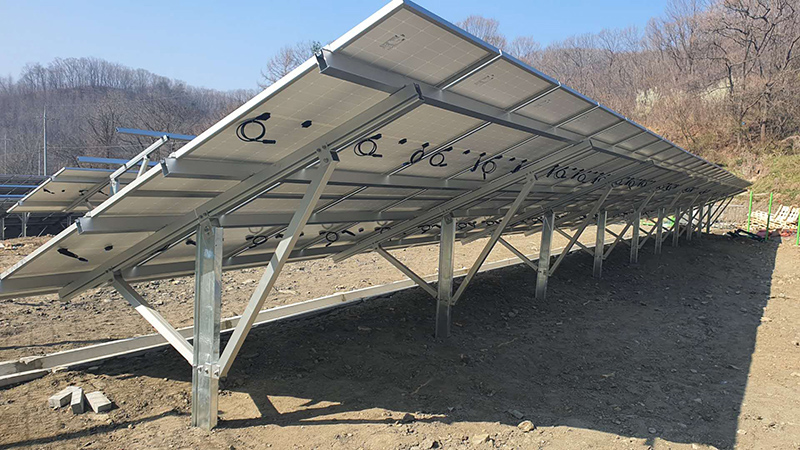

  • Project Case

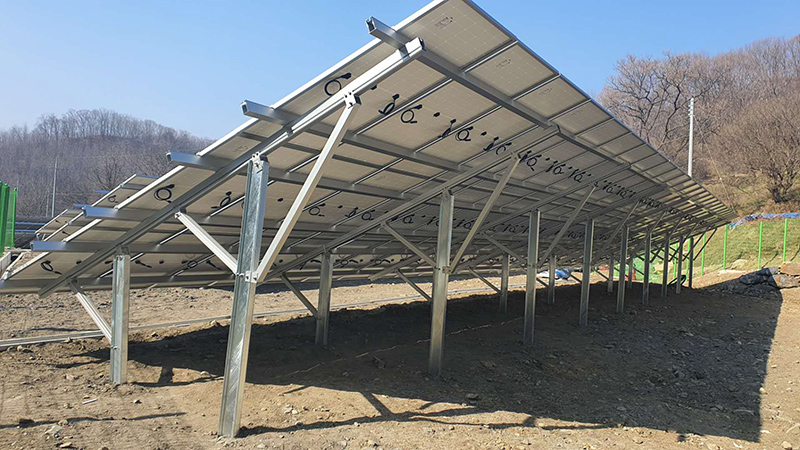

Hot sale aluminium ground pile solar mounting system for commercial or agricultural solar farm



Installtation site
Open field
Main material
AL6005-T5
Foundation
C pile ramming
Advantage
High pre-assembly in factory
Tilt angle
10-35deg
Fasterner material
High-grade steel SUS304
Solar panel
Framed or frameless
Color
Natural
Panel orientation
Landscape or portrait
Treatment
Aluminum Anodization
Max wind load
Up to 60m/s
Service life
More than 25 years
Max snow load
Up to 1.0kN/m2
Warranty
12 years


Features & Benefits


◆Economical and practical
The beams and legs are pre-assembled in the factory to save on-site labor cost and time.

◆Compatible and reliable
The system is made of recyclable AL6005-T5, and can work more than 25 years.


Different Structures

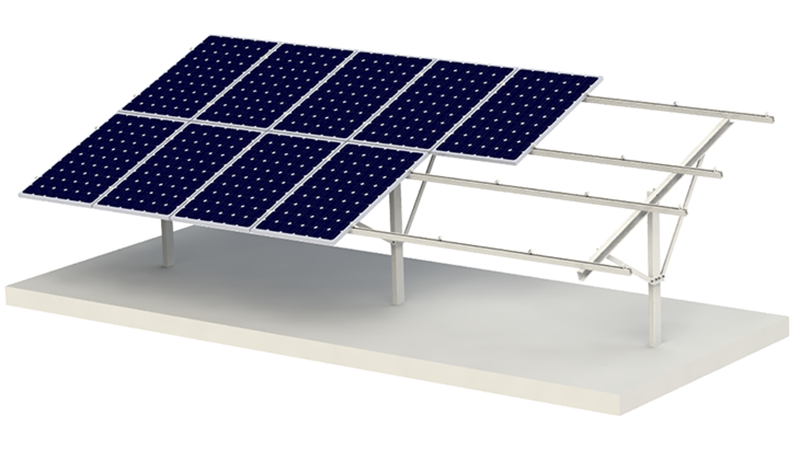

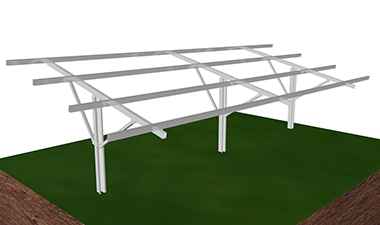

Single-Pile Structure

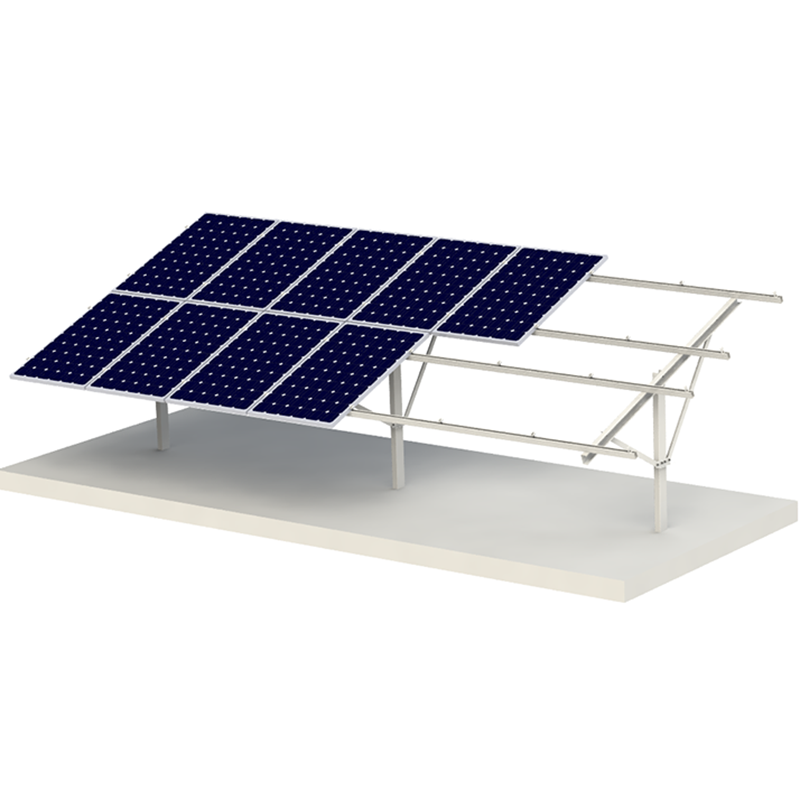

Double-Pile Structure

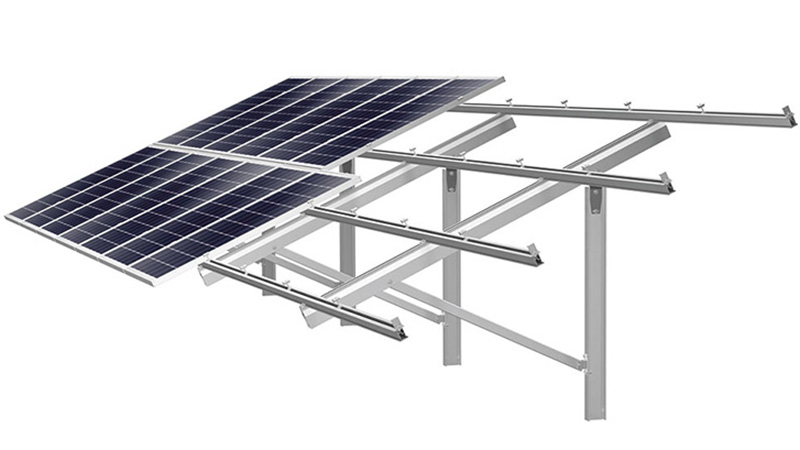

C Pile with Single Arm

C Pile with Double Arm

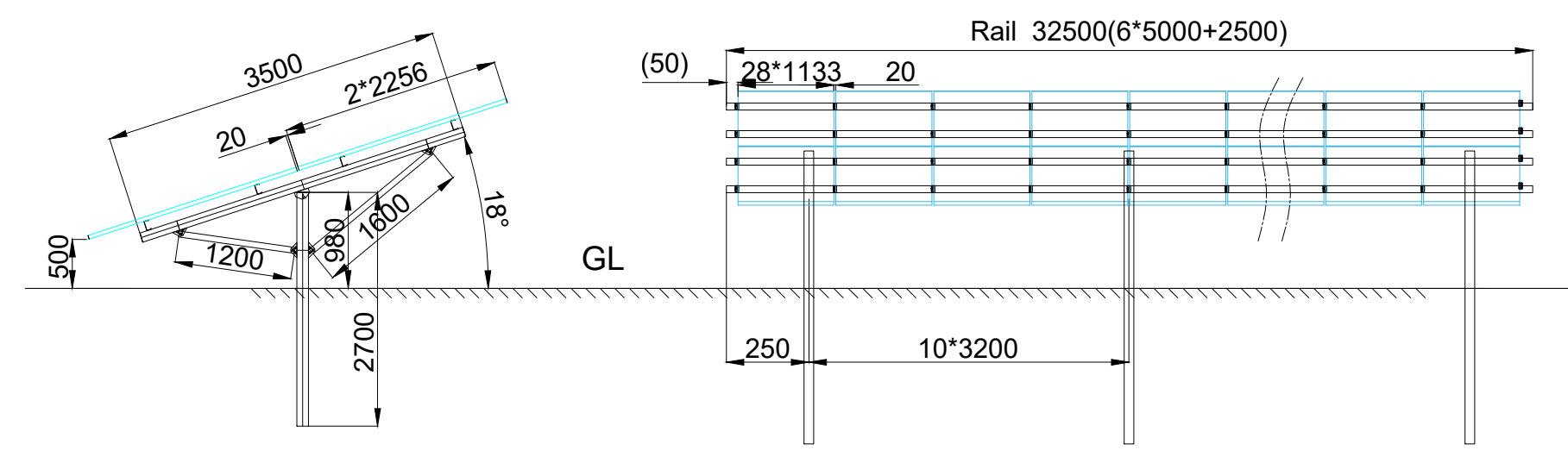

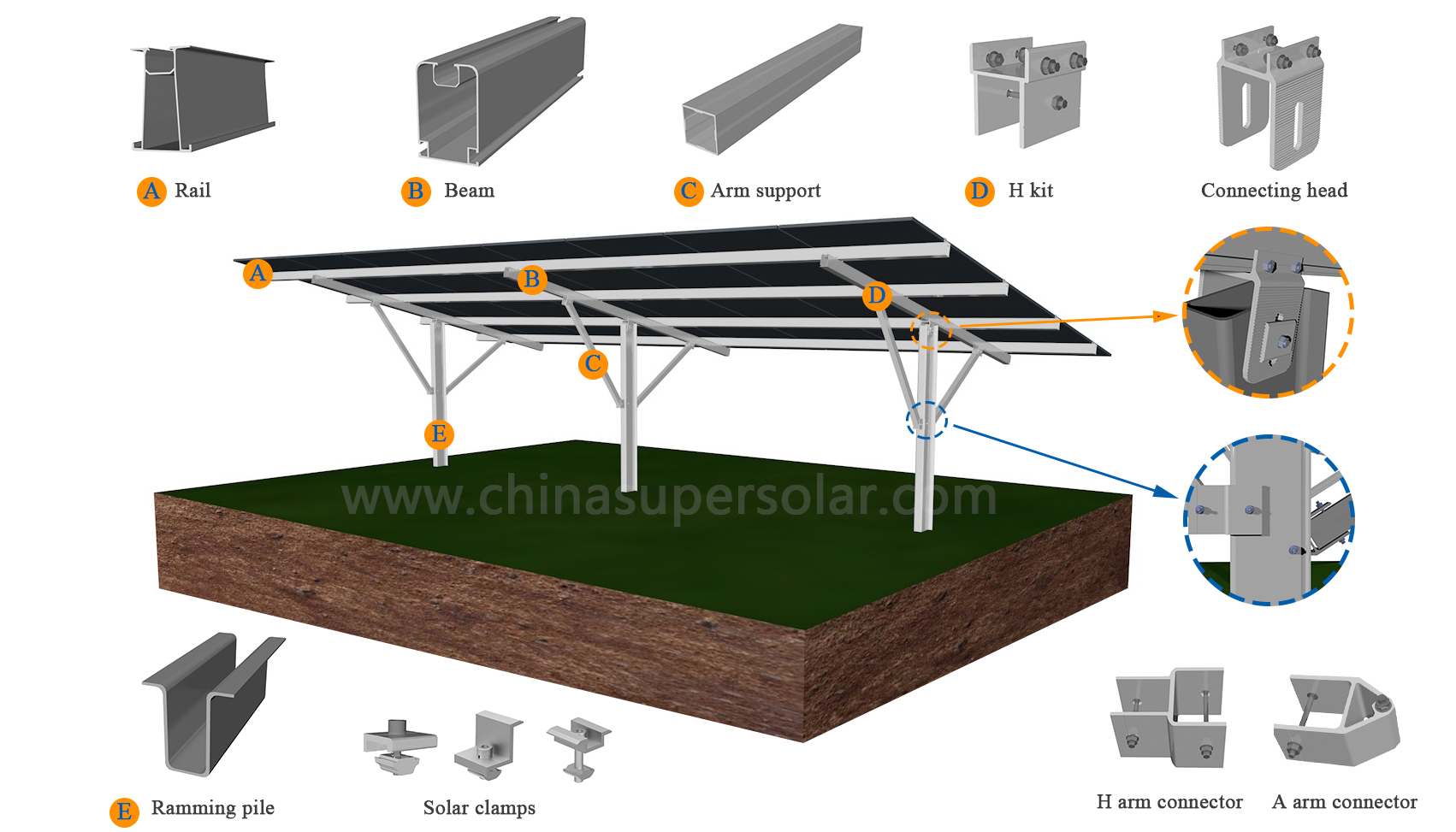

System Overview


Installation Guide

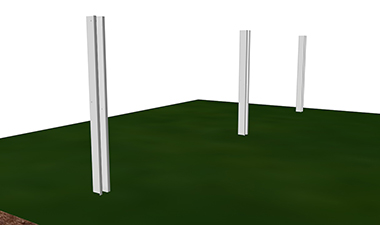

1. Ram the C pile with punching machine

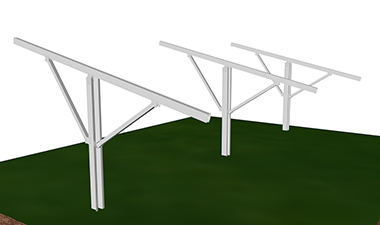

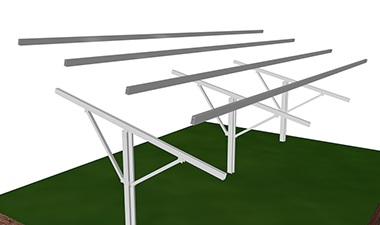

2. Fix the pre-asssembled parts
3. Install the rails upon the beans



4. Fix the rails with rail clamps

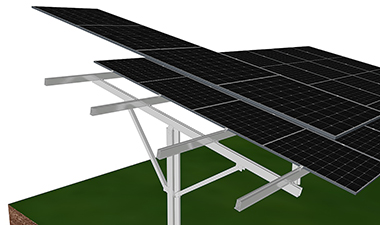

5. Load the panels on the rails
6. Fix the panels with mid and end clamps


Free Project Evaluation


We can help you with new project design support.

Take advantage of SUPERSOLAR 20-year technology experience and let us perform a free evaluation for your project. Our recommendations will deliver a structurally-sound, cost-effective solution based on two-decades of construction experience and testing data.



How to Start Your Project


SUPERSOLAR Mounting System Development and Fulfillment Services:


◆ Site layout and coverage configuration.
◆ Architectural design and structural engineering.
◆ PV panel analysis - layout, alignment, orientation and optimization.
◆ Project quoting and presentation.
◆ High resolution digital project preview (illustrations, 3D site fly over).
◆ Aluminium / Steel structure manufacture and delivery.

◆ Pre-assembled, reduce the labor cost ,save installation time on site

◆ Optional PV Panel mounting.


FAQ


Q: Do you support OEM service?
A: Yes just tell me your demand ,and our factory will work it out for you

Q: I have a solar ground mounting project , any suggestions?
A:Please tell me the size and arrangement of the solar panels, if there is no arrangement,
please tell me the detail , we will design it for you after receiving the information

Q:What is the lead time?
A:For OEM service need 14-21 working days;for roof project 10-14days

Q:What is the payment terms ?
A:30%deposit, 70%balance before shipment T/T LC and other payment methods are available

Q:What about the warranty?
A:The warranty period is 12 years
