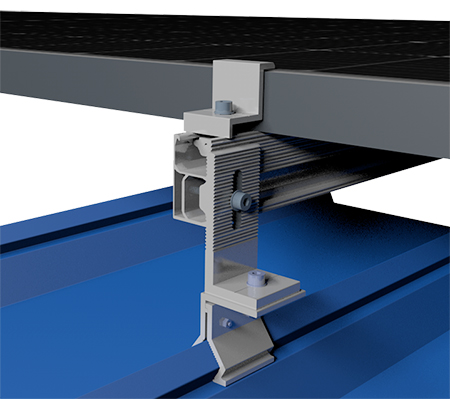

Trapezoidal Rib Metal Roof Klip Lock Clamp Supplier

Trapezoidal Rib Metal Roof Klip Lock Clamp Supplier

Super Solar's solar panel tin roof mount is well designed by our engineering team. There are many different rails and clamps for metal roof solar mounts available,klip lok solar clamps,Standing Seam Clamp. All kinds of different solar panels can fit our roof mounted structures.

  • Brand:

    Super Solar
  • Item No.:

    SS-R-RKAT05
  • Payment:

    T/T,LC
  • Price:

    $0.59/piece
  • Product origin:

    China
  • Color:

    Natural
  • Goods_stock:

    10000
  • Min order:

    100
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15days
  • Product Details

  • Project Case

Wholesale Solar Mounting Structure Standing Seam Panel Clamp for Metal Roof

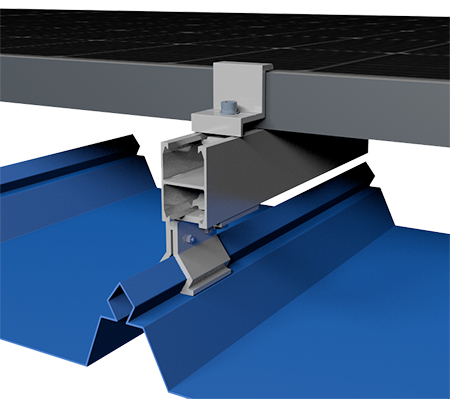

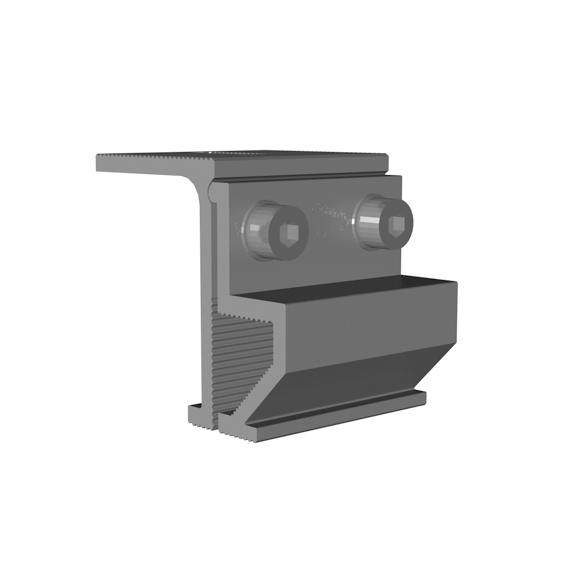

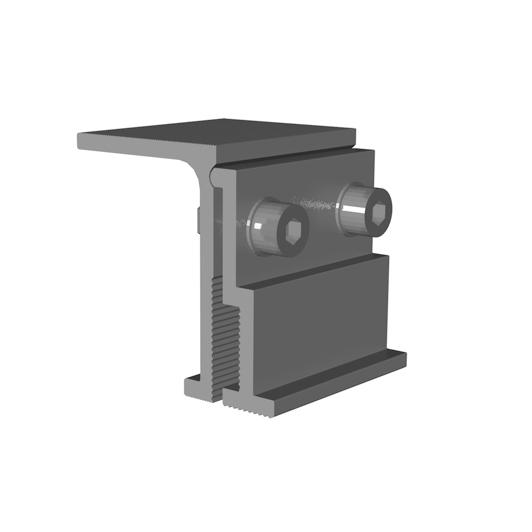

Single-Plate Standing Seam Roof Clamp(To be Used with Rails)


▶Most popular option for standing roof solar systems.
▶Work with both vertically and horizontally-oriented standing seam roof profiles
▶Securely attaches without piercing the metal paneling,
▶Easy installation and long-lasting connection with no risk of leaks.

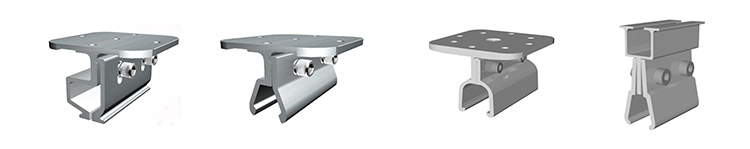

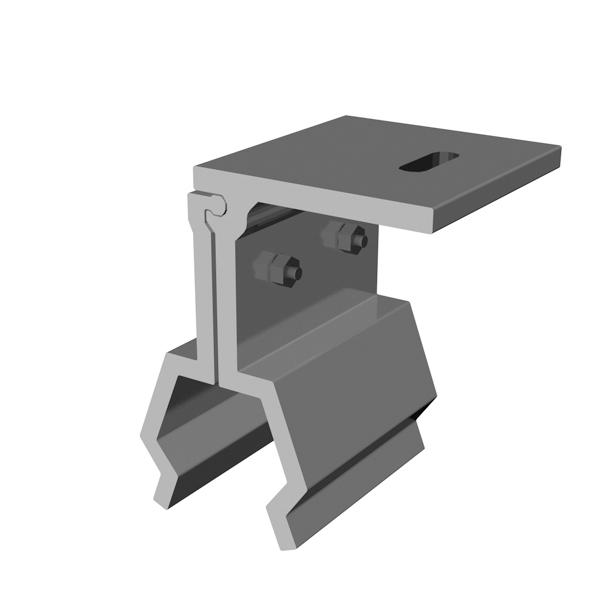

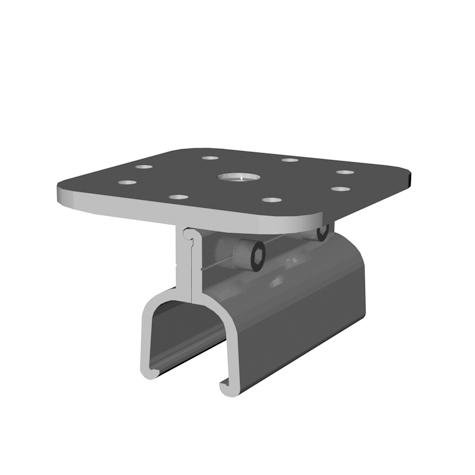

Double-Plate Standing Seam Clamp(Can be Used as Railless Kit)


▶Most popular option for standing roof solar systems.
▶Combined with roof clamp and rail, can be fixed the panel clamps and lay the panels directly on it.
▶Secure fastening without penetrating the roof sheets, great stability but minimum weight.

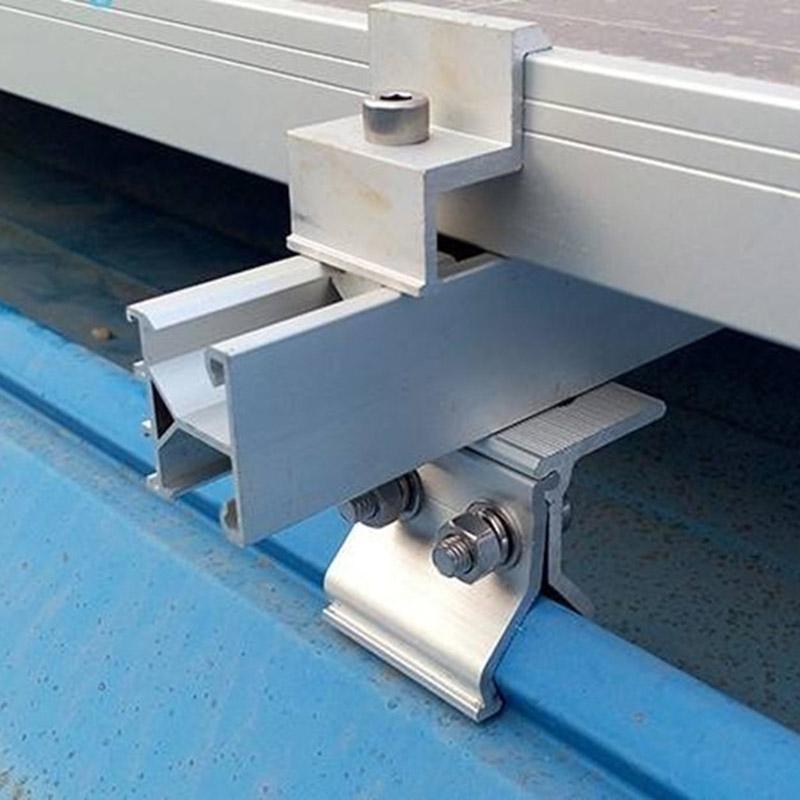

Installtation site
Standing seam roof,seamless roof, Klip lok
Main material
AL6005-T5 & SUS304
Tilt angle
Flushed to roof
Treatment
Anodizing
Building height
Below 20m
Color
Natural
Max wind load
Up to 42m/s
Service life
More than 25 years
Max snow load
Up to 0.5kN/m2
Warranty
12 years


Features & Benefits


1. Considerate design, good compatibility

2. Module design, easy installation

3. Aluminium alloy and stainless steel, long service life

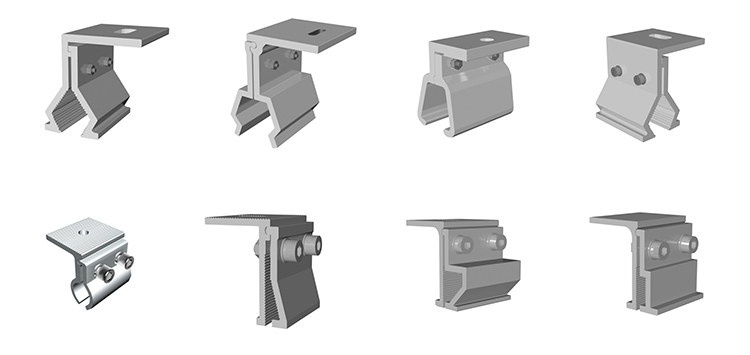

4. Various kit designs, fit with all kinds of roofs

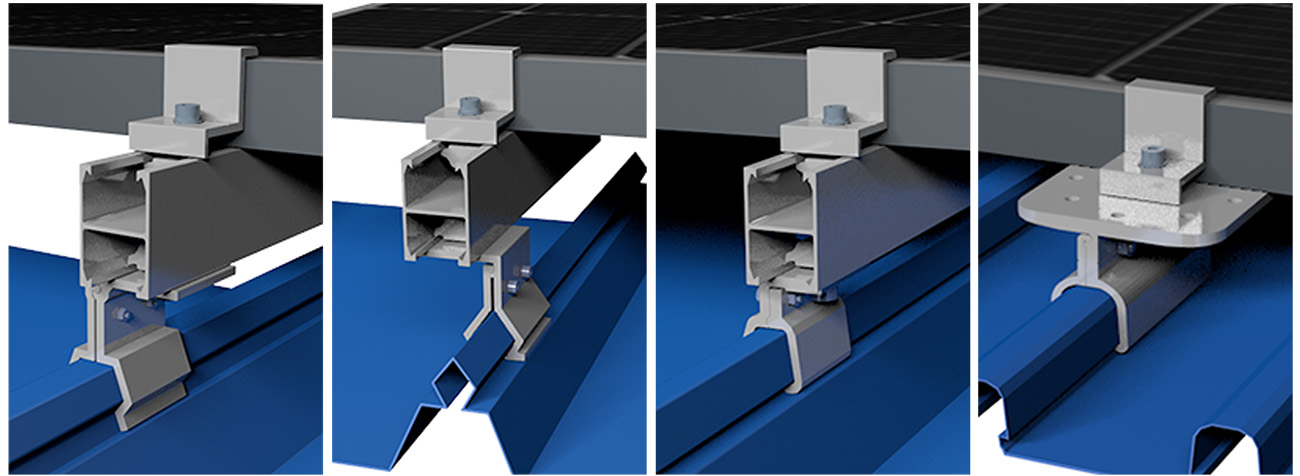

Different Ways to Use The Roof Clamp




The zone without snow
to be fixed with H rail
The snow zone
to be fixed with L kit and G rail

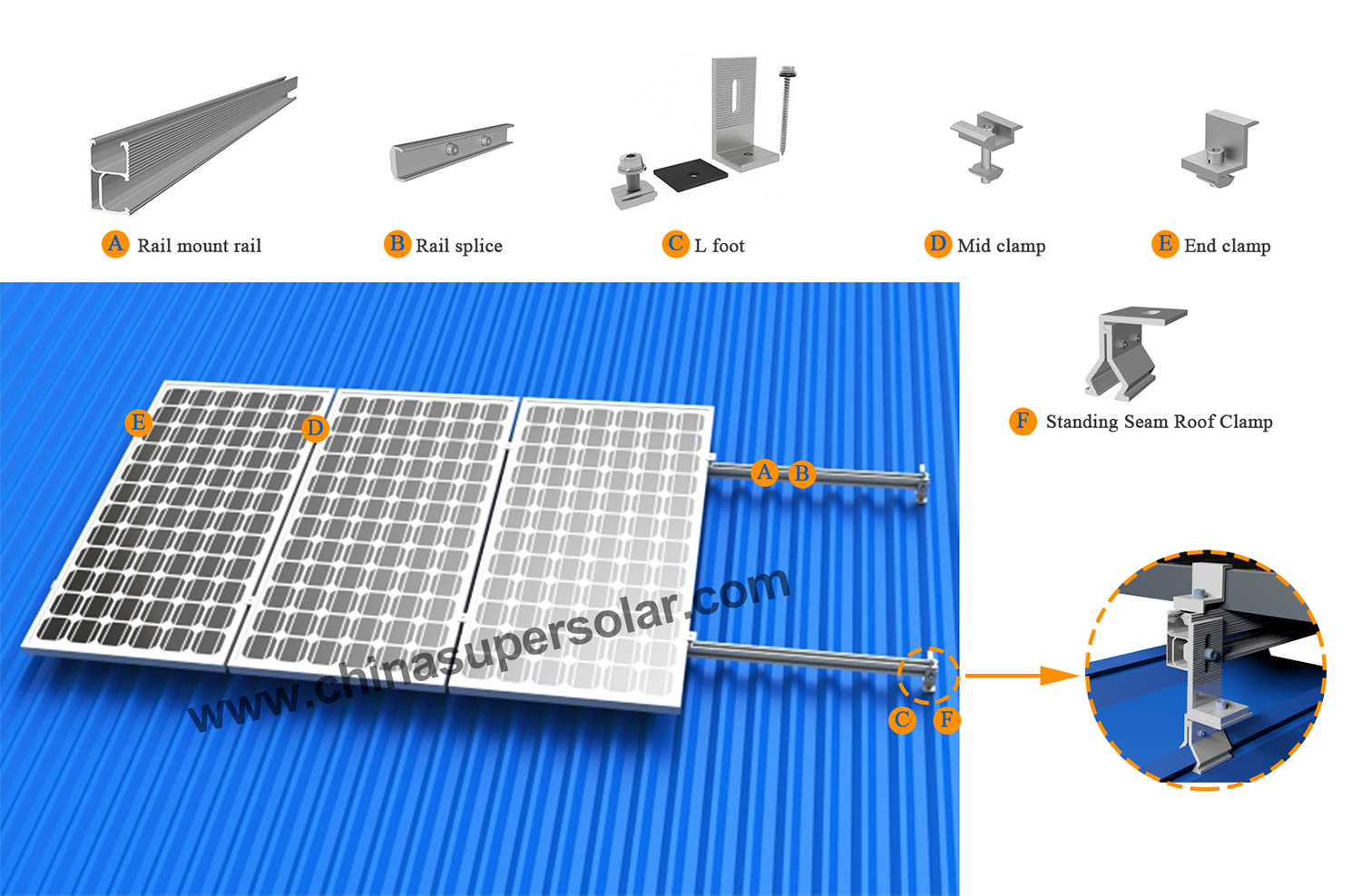

System Overview



Free Project Evaluation

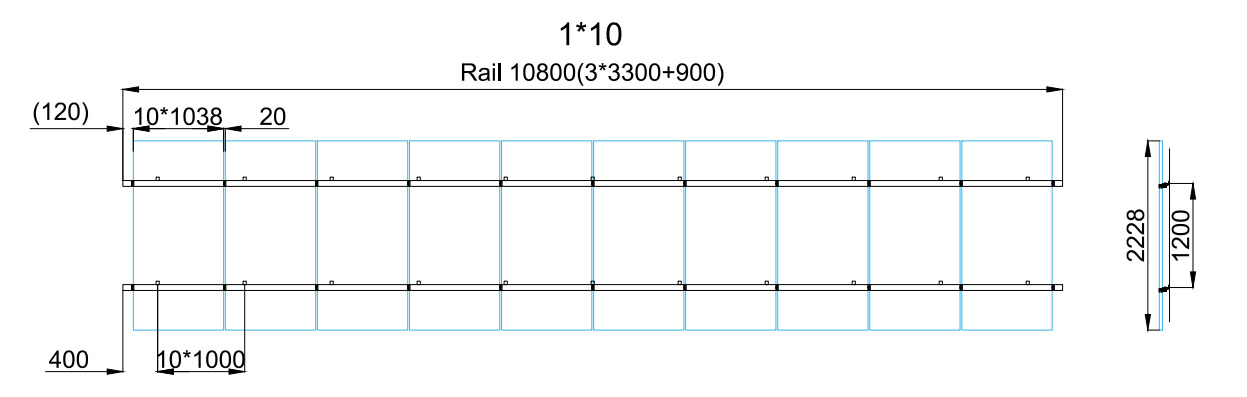

We can help you with new project design support.

Take advantage of SUPERSOLAR 20-year technology experience and let us perform a free evaluation for your project. Our recommendations will deliver a structurally-sound, cost-effective solution based on two-decades of construction experience and testing data.



How to Start Your Project


SUPERSOLAR Mounting System Development and Fulfillment Services:


◆ Site layout and coverage configuration.
◆ Architectural design and structural engineering.
◆ PV panel analysis - layout, alignment, orientation and optimization.
◆ Project quoting and presentation.
◆ High resolution digital project preview (illustrations, 3D site fly over).
◆ Aluminium / Steel structure manufacture and delivery.

◆ Pre-assembled, reduce the labor cost ,save installation time on site

◆ Optional PV Panel mounting.


FAQ


Q: Do you support OEM service?
A: Yes just tell me your demand ,and our factory will work it out for you

Q: I have a roofing project that needs standing seam clamp as a solution, any suggestions?
A: Please tell me the size and arrangement of the solar panels, if there is no arrangement,
please tell me the size of the roof, we will design it for you after receiving the information


Q:What is the lead time?
A:For OEM service need 14-21 working days;for roof project 10-14days

Q:What is the payment terms ?
A:30%deposit, 70%balance before shipment T/T LC and other payment methods are available

Q:What about the warranty?
A:The warranty period is 12 years
